Machine screws are essential fasteners used to hold components together in various mechanical and structural assemblies. They are designed to be used with nuts or screwed directly into tapped holes. Understanding the types, sizes, and applications of machine screws is crucial for selecting the right fastener for a specific project. In this comprehensive guide, we will delve into the world of machine screws, covering everything you need to know to make informed decisions.
Types of Machine Screws
1. Based on Head Style

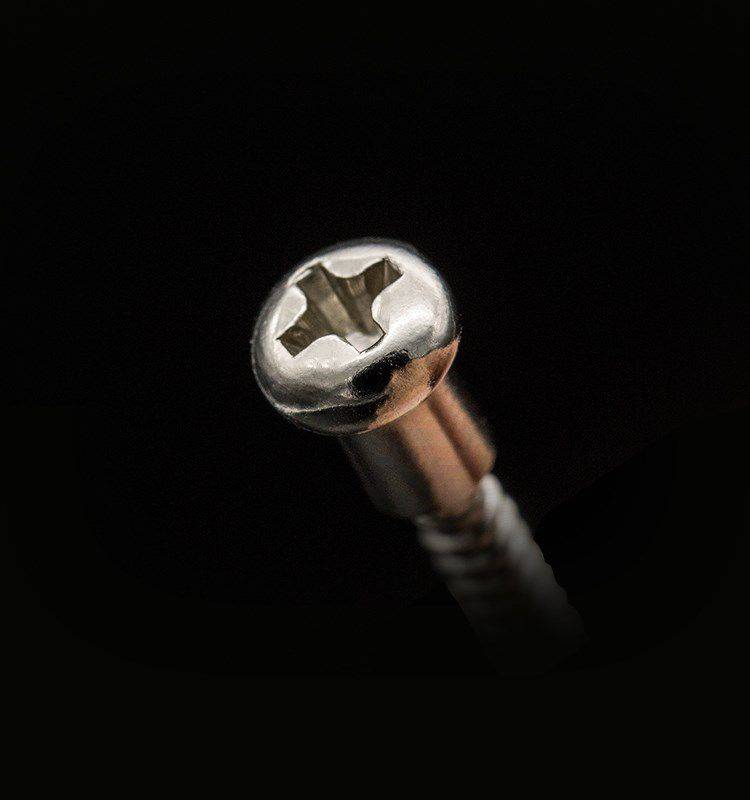

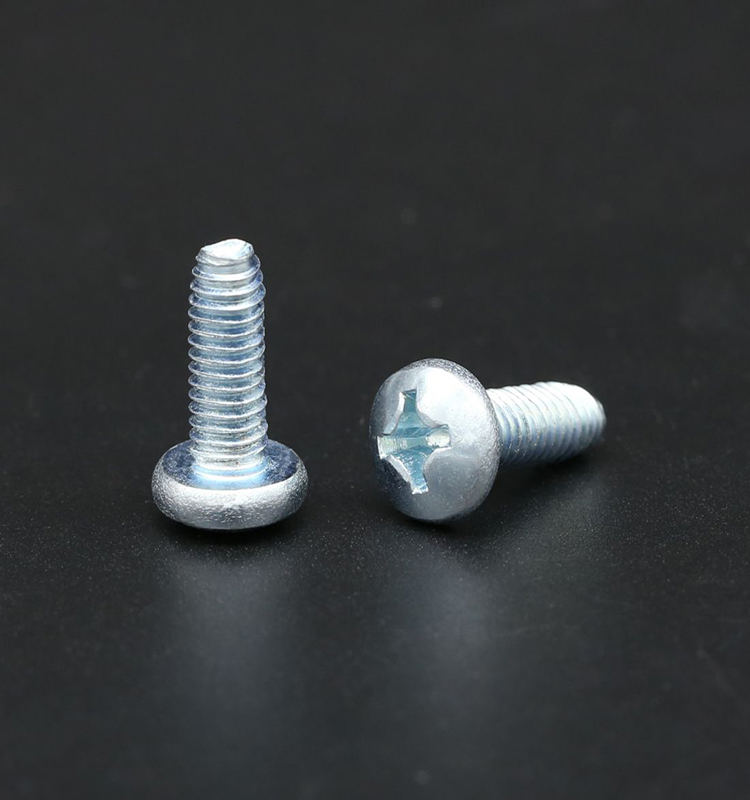

Pan Head Screws: These have a rounded top and a flat underside. They are versatile and commonly used in applications where the screw head needs to sit flush with the surface. They provide a neat appearance and are suitable for both metal and plastic materials.

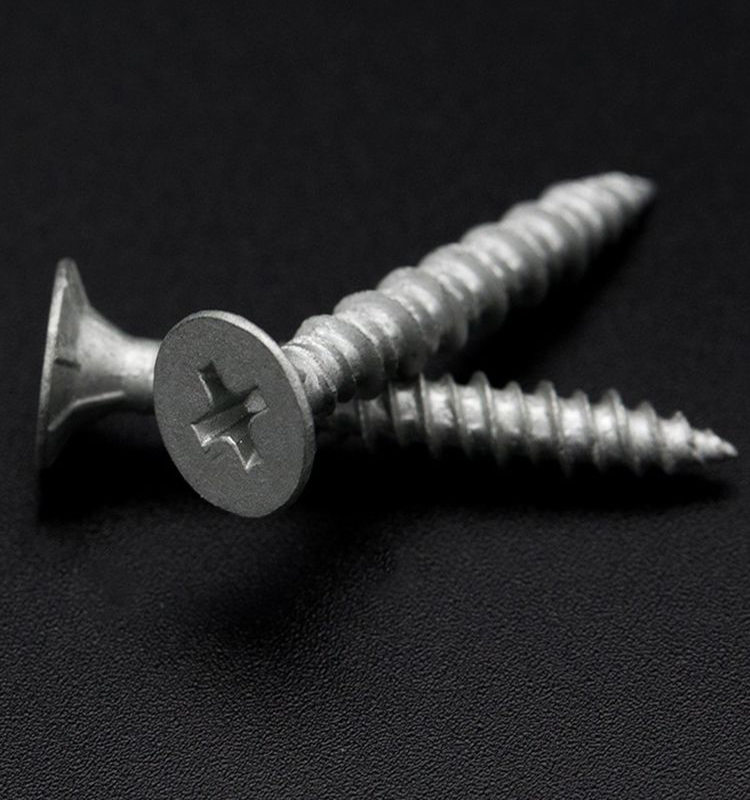

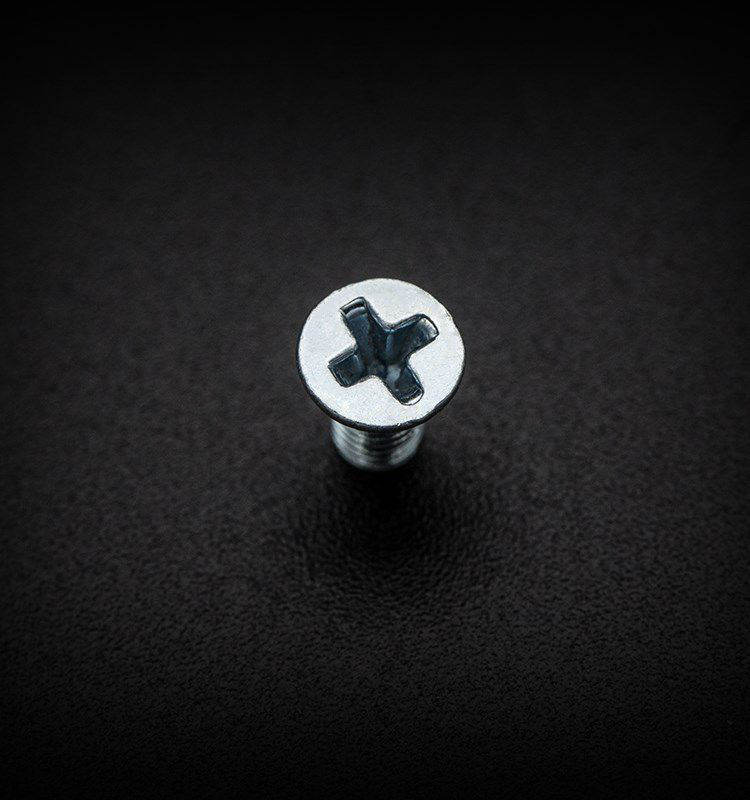

Flat Head Screws: Also known as countersunk screws, they have a conical head that sits flush with the surface when installed. They are ideal for applications where a smooth, flush finish is required, such as in furniture or cabinetry.
Round Head Screws: These have a domed head and are used when the head needs to protrude slightly above the surface. They are often used in decorative applications or where a more prominent head is desired.
Truss Head Screws: They have a low-profile, rounded head with a large bearing surface. This design helps distribute the load over a larger area, reducing the risk of damage to the material. They are commonly used in applications where the screw head may be subject to pressure or stress.
Button Head Screws: These have a rounded head with a flat top, resembling a button. They are used in applications where a smooth, rounded appearance is needed, such as in machinery or electronic equipment.
2. Based on Drive Type
Slotted Screws: These have a single slot in the head for a flathead screwdriver. They are simple and widely used in various applications, but they can be prone to slipping if not tightened properly.

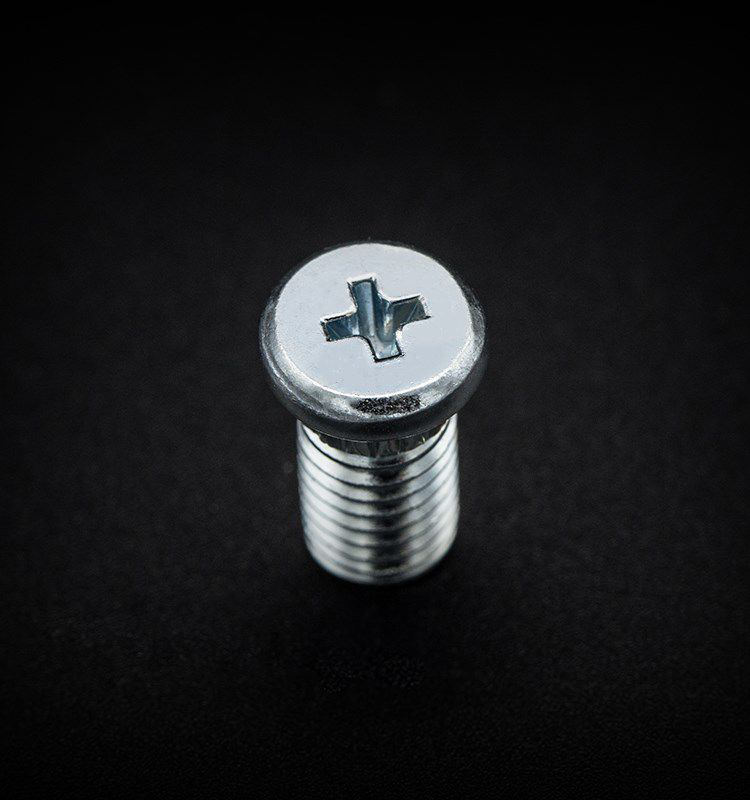

Phillips Screws: With a "+" shaped slot, these screws are designed to engage more securely with a Phillips screwdriver. They are less likely to slip compared to slotted screws and are commonly used in consumer electronics and general assembly.

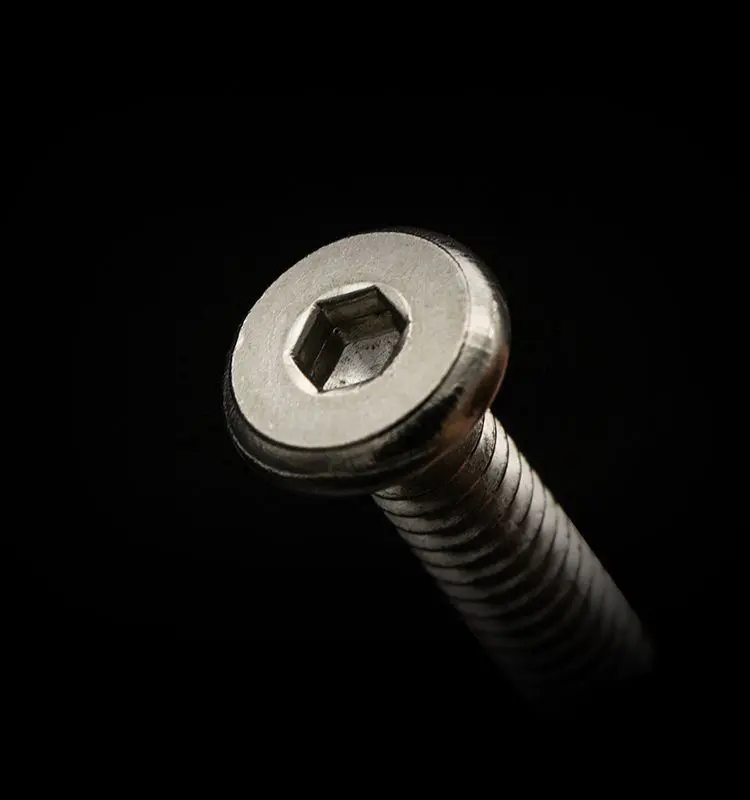

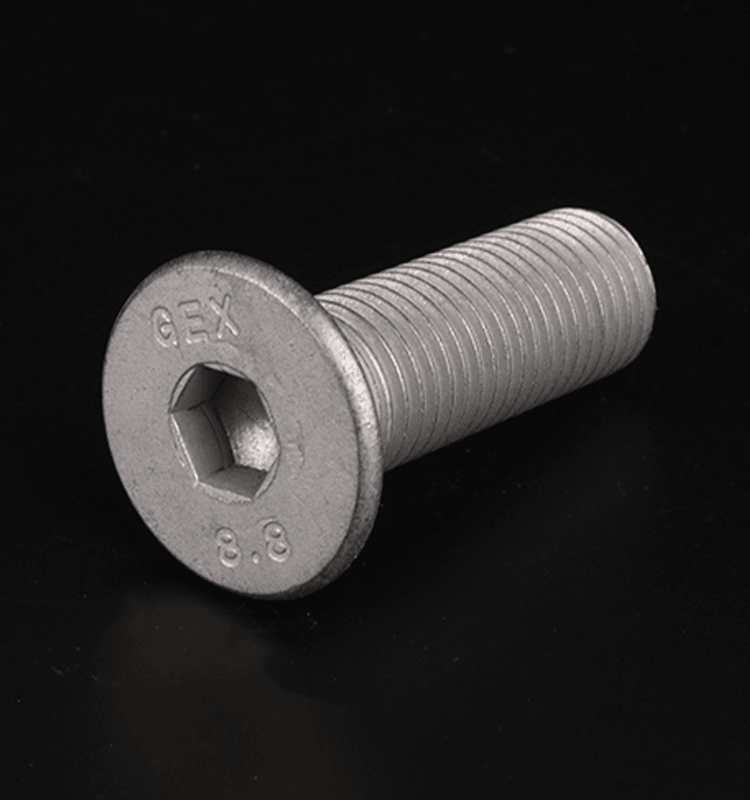

Hex Screws: These have a hexagonal recess in the head, allowing for the use of a hex key or Allen wrench. They provide a high level of torque and are often used in applications requiring strong fastening, such as in machinery or automotive components.

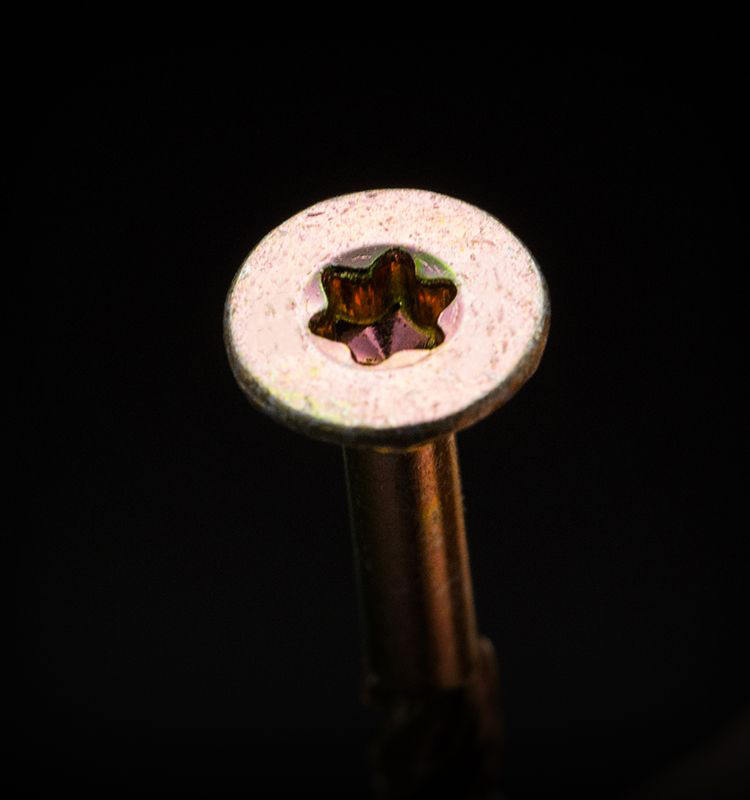

Torx Screws: These have a star-shaped pattern in the head, which provides better torque resistance and reduces the risk of stripping compared to Phillips screws. They are commonly used in high-stress applications, such as in aerospace or heavy machinery.
Square Drive Screws: With a square-shaped recess, these screws offer excellent torque and are less likely to strip than other drive types. They are often used in construction and woodworking applications.
